QDB-5A Automotive Diagnostic Tool Oscilloscope Multimeter Pwm Generator Stepper Motor Tester Adjustable Signal Output Wi

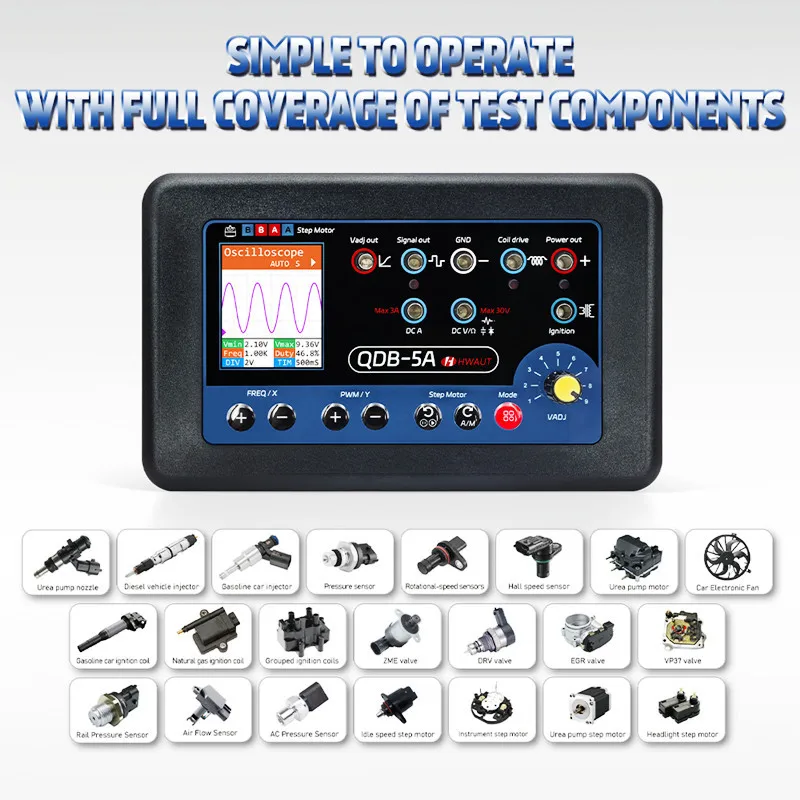

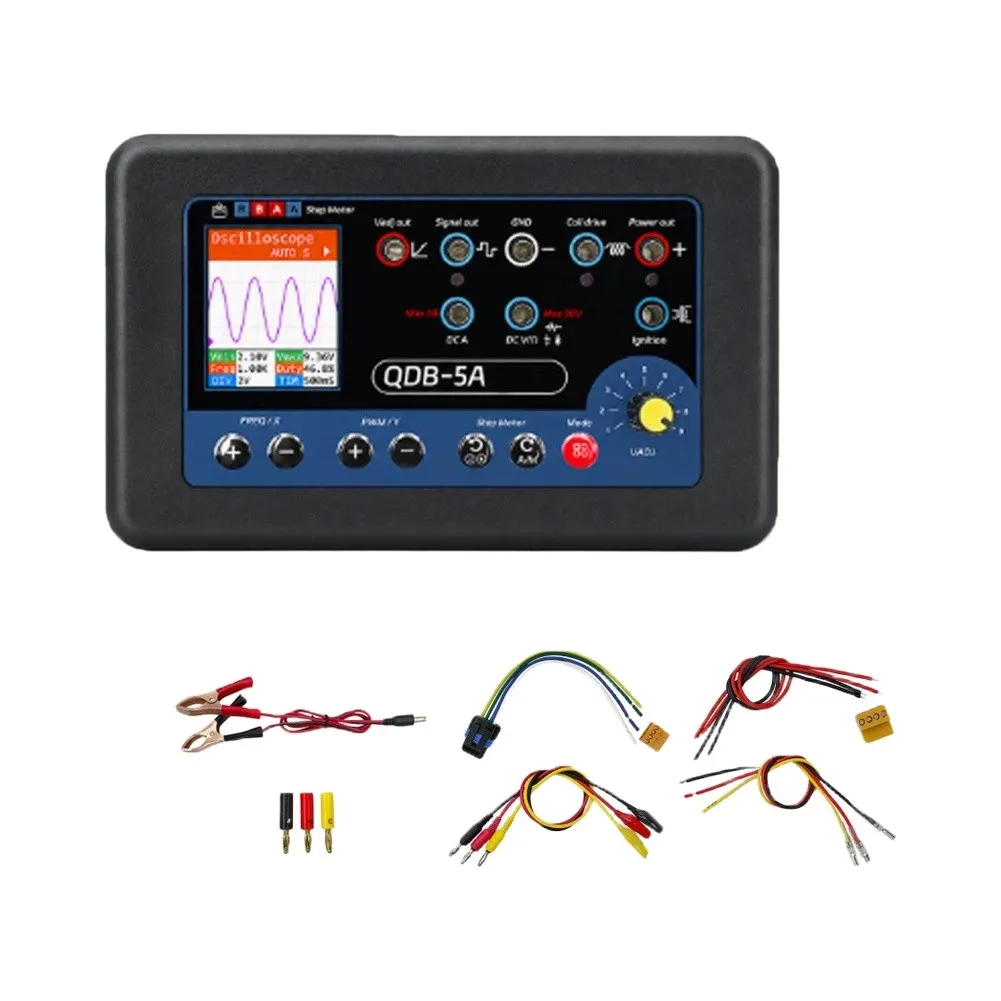

Specifications Power Input DC 9 26V 100WPower Output Max Current 2 5A Max Voltage Based on Input PowerVADJ Output Voltage Range 1 25 14 5V Max Current 1 5ADMM Functions Voltage DC 0 30V Resistance DCR 0 1MΩ Current DC 0 1 8A Capacitance 10nF 1000uF PWM Signal Frequency Range 1 100kHz Duty Cycle 0 100 Voltage Variance 1 25 14 5VDrive Output Max Current 3AStepper Motor Output Max Current 1 5AOperating Temperature Range 0 55°CFeatures 1 Multifunctional Diagnostic Capability Combines oscilloscope multimeter PWM generator and stepper motor tester for comprehensive automotive diagnostics 2 Adjustable Signal Output Fine tune frequency 1 100kHz duty cycle 0 100 and voltage 1 25V 14 5V for precise testing 3 User Friendly Display Features a high resolution TFT color screen for waveform visualization and parameter control 4 Wide Range Compatibility Supports 12V 24V systems and works with solenoids injectors air pressure sensors and ignition coils 5 Compact Design Lightweight and portable ideal for professional auto repair shops or DIY mechanics Package Included 1 x QDB 5A Diagnostic Tool1 x Power Cable2 x Test Connection Lines1 x Stepper Motor Welding Wire1 x Idle Speed Stepper Motor Plug1 Set x Single Plugs
