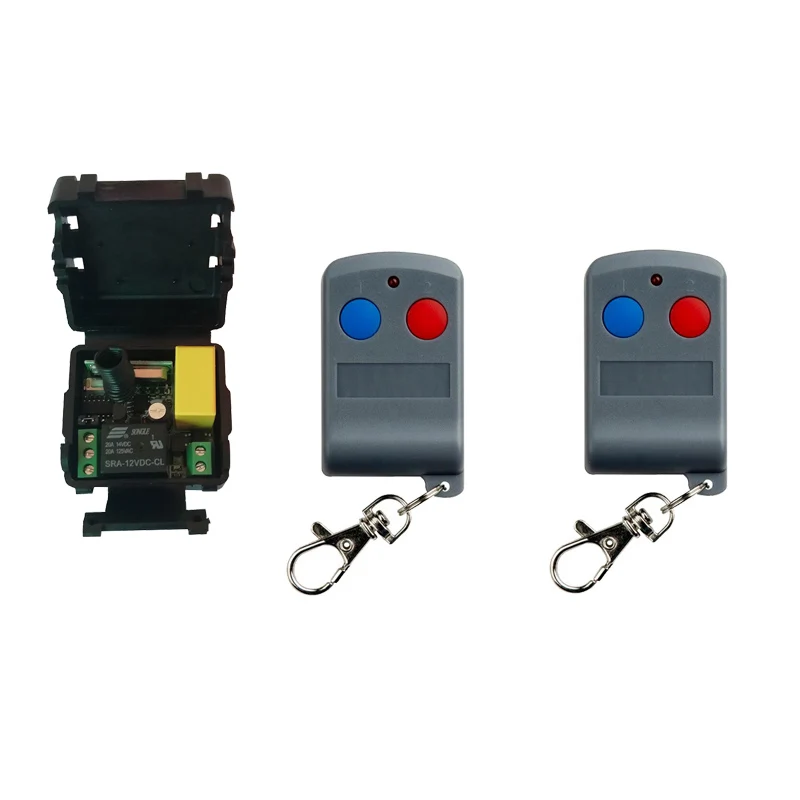

433Mhz Wireless Remote Control Switch Dc 12V 10A 1CH Relay Module Receiver On Off Remote Control For Gate Led Lights Bul

Specifications Input Voltage 12V RF working mode SuperheterodyneReceiver sensitivity 97 dbmTransmitting distance 100 m open space Decoding mode MCU software decodingRemote storage 20Support remote type EV1527 learning codeWorking mode Momentary toggle latching time delay 5s 10s 15s Output terminal NO NC COMRemote control battery 2 x 3 V CR2016 button batteriesNote Maximum input power is 250 VPackage Include optionalType1 1 Remote 1 Button 1 ReceiverType2 1 Remote 2 Button 1 ReceiverType3 Only 1 ReceiverType4 1 Button Remote onlyType5 2 Button Remote only Please pay attention to the product type before purchasing Different types include different products and have different prices Operating Function Description 1 Code learning operationInching learning code After the controller is connected to the power briefly press the learning code button the light flashes once and then long press the remote control button for 3 seconds The controller indicator light flashes to indicate successful learning code and the working mode is inching mode Self locking code learning After the controller is connected to the power briefly press the code learning button twice once the light flashes and then long press the remote control button for 3 seconds The controller indicator light flashes to indicate successful code learning and the working mode is automatic mode Interlockingcode learning After the controller is connected to the power briefly
