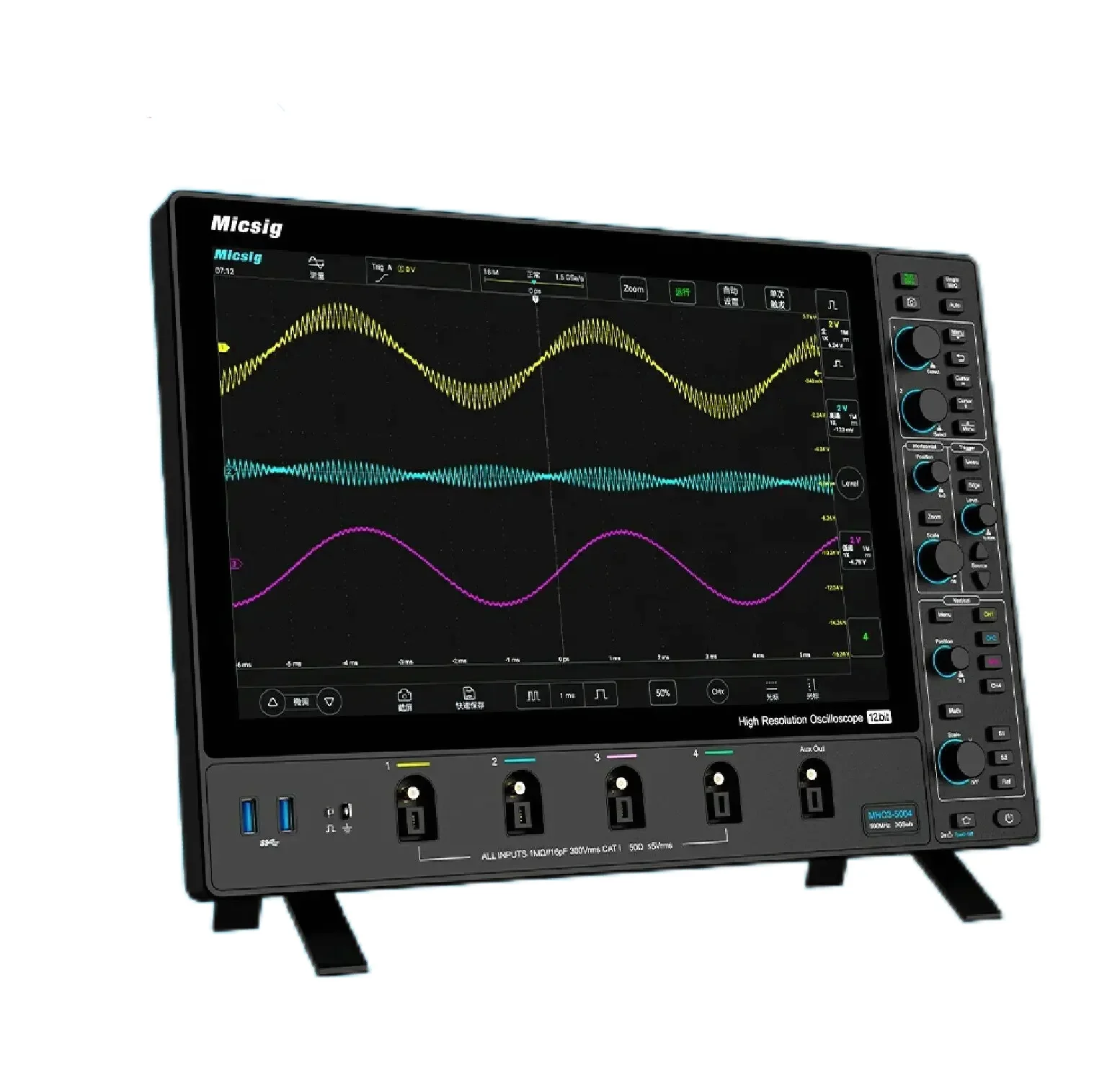

Micsig Digital Oscilloscope MDO5004 MDO3504 MDO2504 500Mhz 4 Channels 3Gsa/S Sampling Rate 360Mpts Memory 14 Inch Touch

Please click here to download the instruction manualFeatures High Bandwidth Experience unparalleled signal fidelity with up to 500MHz bandwidth ensuring precise measurements on a wide range of signals Fast Sampling Rate Capture detailed signal information with a sampling rate of 3GSa s facilitating accurate and exhaustive waveform analysis Extensive Memory Depth Handle complex waveforms effortlessly with 360Mpts memory depth allowing extended data capture and analysis without compromising accuracy User Friendly Interface Navigate and interact seamlessly on a 14 TFT LCD touch screen with 1920 1200 resolution making waveform inspection intuitive and efficient Versatile Connectivity Connect and export data effortlessly through various interfaces including USB 3 0 Host USB type C LAN High Definition Multimedia Interface and Trigger out ensuring versatile data handling and integration options Specifications Model Options MDO5004 MDO3504 MDO2504Bandwidth 500MHz MDO5004 350MHz MDO3504 250MHz MDO2504 Rise Time ≤ 0 7ns MDO5004 ≤ 1ns MDO3504 ≤ 1 4ns MDO2504 Analog Channels 4Sampling Rate 3GSa sMemory Depth 360MptsWaveform Capture Rate 230 000 wfms sVertical Resolution 8 bitsNoise 90μVrmsBus Decoding Std RS 232 422 485 UART CAN CAN FD LIN SPI I²C ARINC 429 MIL STD 1553BInterfaces USB 3 0 Host USB type C LAN High Definition Multimedia Interface Trigger outDisplay 14 TFT LCD touch screen 1920 1200 resolutionTrigger Types E
