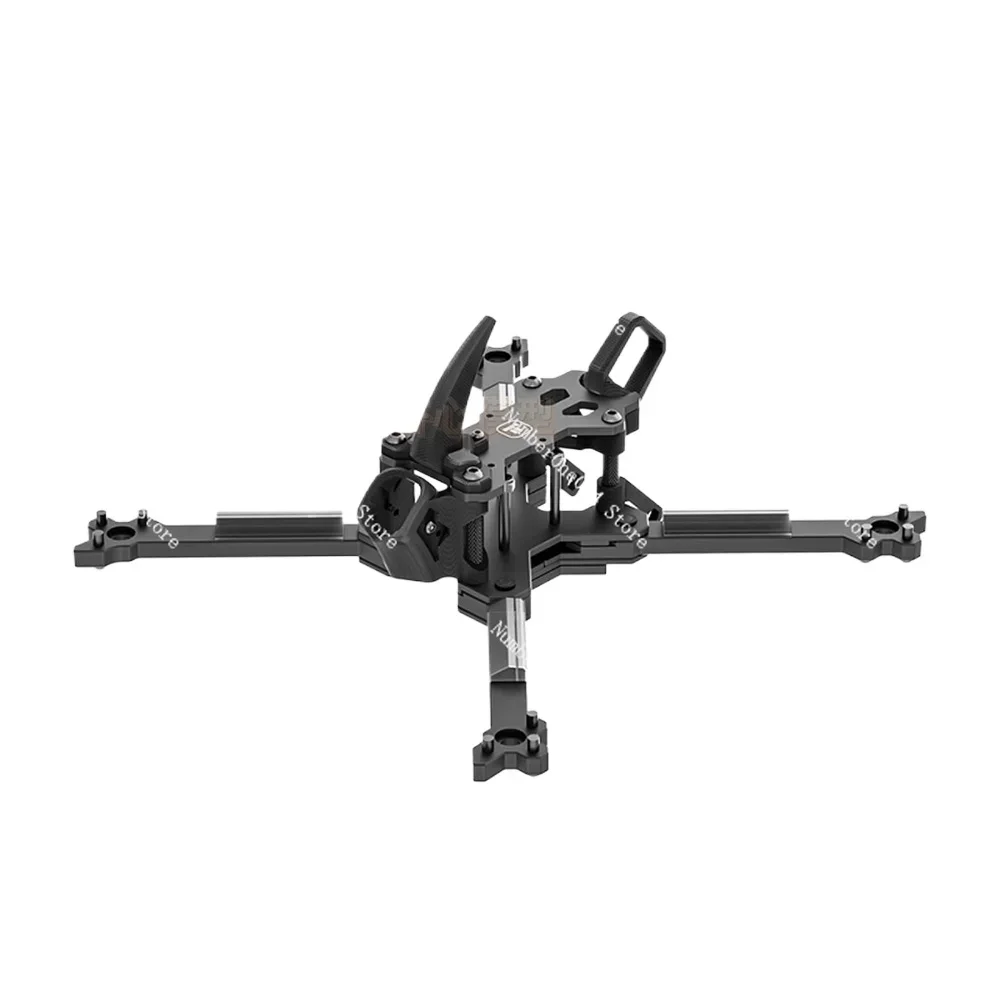

iFlight Mach R5 Ultra Trainer 190Mm 5 Inch Frame Kit Compatible With Analog / Hdzero VTX For DIY RC FPV Racing Drones

Note 1 Tolerance Note Due to manufacturing processes the thickness of our products may have a standard manufacturing tolerance of ±0 2mm The size of the hole may have a standard manufacturing tolerance of ±0 1mm 2 Comes unassembled Need build by buyers Specifications Brand iFlightProduct Name Mach R5 Ultra Trainer Race Frame KitWheelbase 190mmFrame Dimension 157 148 33mmTop Plate 2mmArm Thickness 5mmBottom Plate Thickness 2mmUpper Plate Thickness 2mmMaximum Flight Stack Height 22mmMax VTX Height 22mmFC Mounting 20 20 Φ3 mmVTX Mounting 20 20 Φ3 mmMotor Mounting 16 16 Φ3mmWeight 73±3gCompatibility not included BLITZ Mini Force 600mW VTX BLITZ RACE 5 8G 25mW VTX HD Zero Race V3Recommended parts not included FCESC 20x20mm iFlight BLITZ Mini F7 V1 1 FC 55A StackBurshless Motor iFlight XING2 2207 1855KV motorPropeller 2 Pairs HQ Freestyle Prop 5X4 3X3V2S 5043 3 Blade PropellerLipo Battery TATTU R LINE 3 0 6S 22 2V 1400mAh 120C 6S1P LiPo Battery XT60VTX BLITZ Mini Force 600mW VTX BLITZ RACE 5 8G 25mW VTX HD Zero Race V3Packing Included 1 x Mach R5 Ultra Trainer Frame Kit Non assembled 2 x Battery straps1 x TPU Set2 xAnti slip Battery Pads4 x Motor Wire Shield Tube1 x Screw Bag
